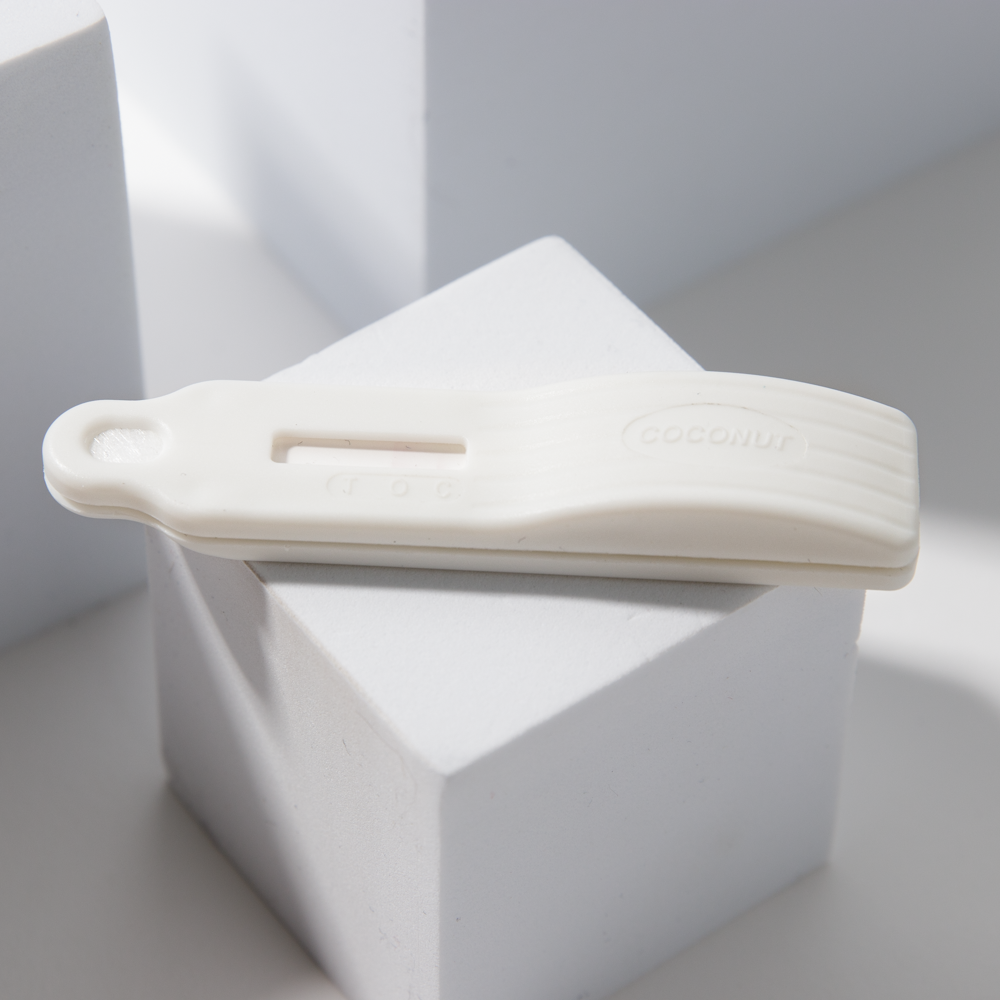

Reveal® 3-D for Coconut

Item No.  8565

  • Results in just 5 minutes
  • Easy-to-use lateral flow test strip — no equipment needed
This item has shipping restrictions.
$218.88 each
In stock
Out of stock
Expect availability in 2-4 weeks
Minimum quantity required: 1
This item must be ordered in multiples of one case. Quantity per case: 1

Reveal® 3-D for Coconut offers results in just 5 minutes and can be used in virtually any environment to screen for coconut in liquid products (like UHT beverages, juices, drink flavours, etc.), clean-in-place rinses and environmental surfaces. The Reveal 3-D line of food allergen tests kits is uniquely designed to guard against over-saturation and false negative results, with results displayed in three visual lines on the lateral flow test strip. A control line assures the test is working properly, and two other lines outline non-detectable, low, and high levels of coconut.

Brand Reveal®
Analyte Coconut, Tree Nuts
Platform Lateral Flow
Result Type Qualitative
Limit of Detection Screens samples at 1 ppm coconut protein. Screens swabs at 1 μg/100 cm2 coconut protein.
Testing Time 5.00
Quantity per Package 10 tests
Package Dimensions 6.30 in x 3.10 in x 0.10 in
Package Weight 0.50

The Reveal 3-D Coconut Test pack contains the following:

  1. 1 foil pouch, containing 10 white Reveal 3-D for Coconut test devices
  2. 10 sample tubes and caps
  3. 10 sachets of Type 8 extraction buffer
  4. 10 sterile swabs
  5. 1 bottle swab wetting solution


Assay Principles

The Reveal 3-D format is a single-step lateral flow immunochromatographic assay. The extract is wicked through a reagent zone, which con­tains antibodies specific for the target allergen conjugated to colored particles. If allergen is present, it will be captured by the conjugated antibodies. The allergen antibody-particle complex then is wicked onto a membrane which contains a zone of antibody specific for the target allergen. This zone captures the complex allowing the particles to concentrate and form a visible line. If no target allergen is present, no line will form.
